Features
– Robust and reliable
– Ergonomic design
– Highly precise wheel
– Precision counter with 0.01 m resolution
Home/Construction Equipment/Measuring Tools/Measuring Wheelsã…¤
Super measuring wheel
NEDO 702111
$559.00 (GST Excl)

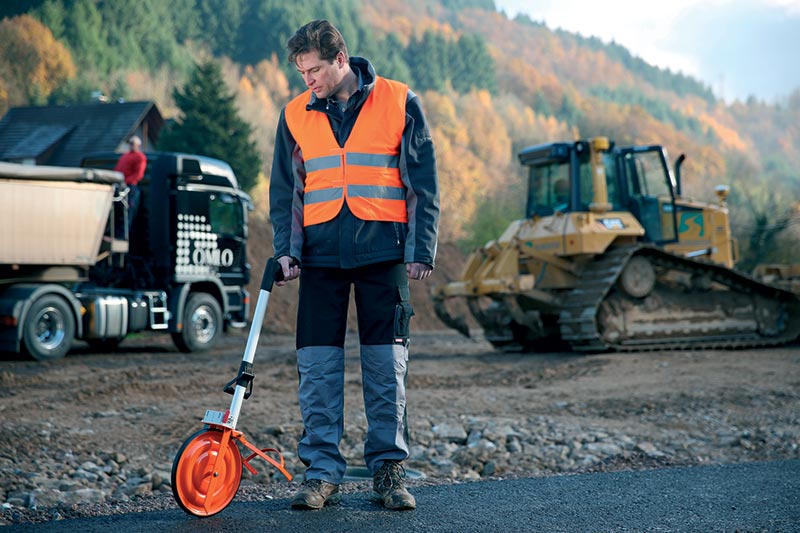

The Nedo Super measuring wheel meets the highest standards in terms of precision, quality and reliability. Thanks to tight manufacturing tolerances and a high-quality counter, its accuracy is ± 0.02%, which corresponds to a maximum error of ± 2 cm over a distance of 100 m. The counter, which has a display resolution in cm, is mounted securely above the wheel and is driven by a toothed belt. Zero setting is done with a hand lever. The brake is integrated into the sturdy rest support. The ergonomic pistol grip and the rugged aluminium guide bar make handling easy at all times. A clever mechanism permits the guide bar to be folded away for transport.
Technicals
Ref.-No:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 702 111
Wheel circumference: Â Â Â Â Â Â Â Â Â Â Â 1 m
Measuring range: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0 to 9,999.99 m
Counter arrangement: Â Â Â Â Â Â Â Â Â Â central
Resolution:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.01 m
Weight: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â approx. 3.65 kg
Tolerance:                                          ± 0.02 %
| Weight | 5.30 kg |
|---|---|
| Dimensions | 560 × 430 × 250 mm |
